WEB PAGE ESTIMATING TOOLS

Before using “FCI” Estimating tools please read and except terms of use below.

  1. NOZZLE CALCULATION PROGRAM (CLICK)
    By providing the necessary basic information, the nozzle Calculation Program will assist you in determining your nozzle type based on the calculations presented in ASME Section VIII, Division 1. this program is an estimating tool only! All information showed should be verified by an experienced engineer or other qualified persons before purchasing.
  2. NOZZLE SELECTION PROGRAM (CLICK)

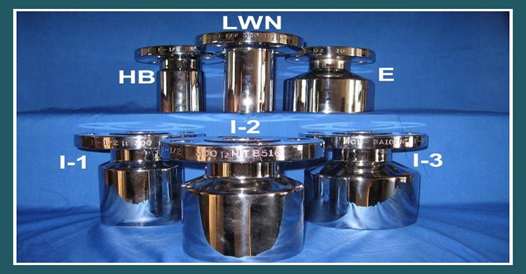

    The FCI Standard Self Reinforcing Nozzle Selector is a program given that Nozzle Size and Rating or known gives you the technical catalog data of each nozzle type LWN, HB, I*-1,2,3, & E*, as well as a comparable view of each nozzle wall thickness at a glance.
  3. SWEEP LOSS & OVERALL LENGTH PROGRAM (CLICK)
    After the Nozzle Selector Program has helped you indentify which nozzle type by wall thickness requirement , this program will assist you to determine your connection type and with the radius and centerline to F/F dimension will calculate the sweep loss and nozzle overall length.
  4. QUOTE PAGE (CLICK)
    You can go directly to the quote page and copy and paste your nozzle selection giving us any additional information that might be required to send an electronic quote to your purchasing department. We look forward to assisting you anyway possible; Thank You

ASME PRESSURE VESSEL FAMILY




Terms of Use





* denotes I1, I2, I3 and E are Trade Marks of FCI
